VCM111-26-AL, 0.720x, 26mm FOV, 72mm WD, 1.1" Sensor

VCM Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc.
Note: Some products will have changes in appearance and parameters. Please contact our sales team for the latest information.
Product parameters
Model: VCM111-26-AL
Mount: C-Mount
Detector: 1.1"
Mag.: 0.720x
FOV: 26mm
WD: 72mm
INQUIRY

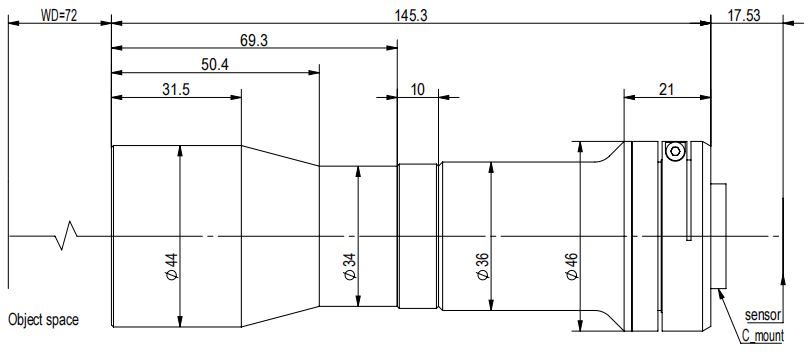

Description Specifications Drawing

VCM Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.

  • Optimized for 1/2.5"~1.1" C-Mount cameras;
  • Large FOV from 26mm upto 300mm;
  • Excellent resolution for high pixel cameras;
  • Low distortion, good telecentricity,big aperture and big depth of field for high end application.

Optical specifications
Magnification (x) 0.720
Object Field of View (Φmm) 26
Working Distance (mm) 72±2
Max Sensor Size (Φmm) 18.4(1.1")
Best Aperture (F/#) 9.8
Telecentricity typical (max) (deg) <0.1
Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >90
Depth of Field (mm) ±1
Length of I/O (mm) 234.8
Field of View (mmxmm)
14.19x10.38 with IMX253 19.7x14.4
Mechanical Specifications
Mount C
Length (mm) 145.3
Weight (kg) 0.5
Notes:
1. Depth of Field as the theoretical value, within the scope of the theoretical value, the image can be used to measure, but in
    order to get good image quality are suggested to use half of the theoretical value in application.
2. Length of  I/O = WD + Length + Back Focal Length.
