VCM110-26-AL, 0.641x, 26mm FOV, 72mm WD, 1" Sensor

VCM Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc.
Note: Some products will have changes in appearance and parameters. Please contact our sales team for the latest information.
Product parameters
Model: VCM110-26-AL
Mount: C-Mount
Detector: 1"
Mag.: 0.641x
FOV: 26mm
WD: 72mm
INQUIRY

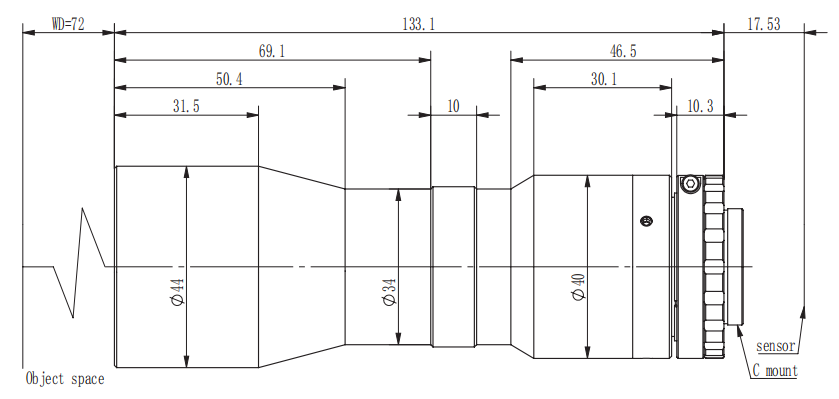

Description Specifications Drawing

VCM Series Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.

  • Optimized for 1/2.5"~1.1" C-Mount cameras;
  • Large FOV from 26mm upto 300mm;
  • Excellent resolution for high pixel cameras;
  • Low distortion, good telecentricity,big aperture and big depth of field for high end application.

Optical specifications
Magnification(x) 0.641
Object Field of View (Φmm) 26
Working Distance (mm) 72±2
Max Sensor Size (Φmm) 16.6(1")
Best Aperture (F/#) 9
Telecentricity typical (max) (deg) <0.1
Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >80
Depth of Field (mm) ±1
Length of I/O (mm) 224
Field of View  (mm × mm)
12.85x9.64 with KAI-04050 20.0x15.0
11.26x11.26 with CMV4000 17.5x17.5
12.50x10.00 with ICX674/694/814 19.5x15.6
Mechanical Specifications
Mount C
Length (mm) 133.3
Weight (kg) 0.4
Notes:
1. Depth of Field is calculated value, this value could be used for imaging test, but to get sharp image in application, half of
    calculated value is suggested.
2. Length of  I/O = WD + Length + Back Focal Length.
